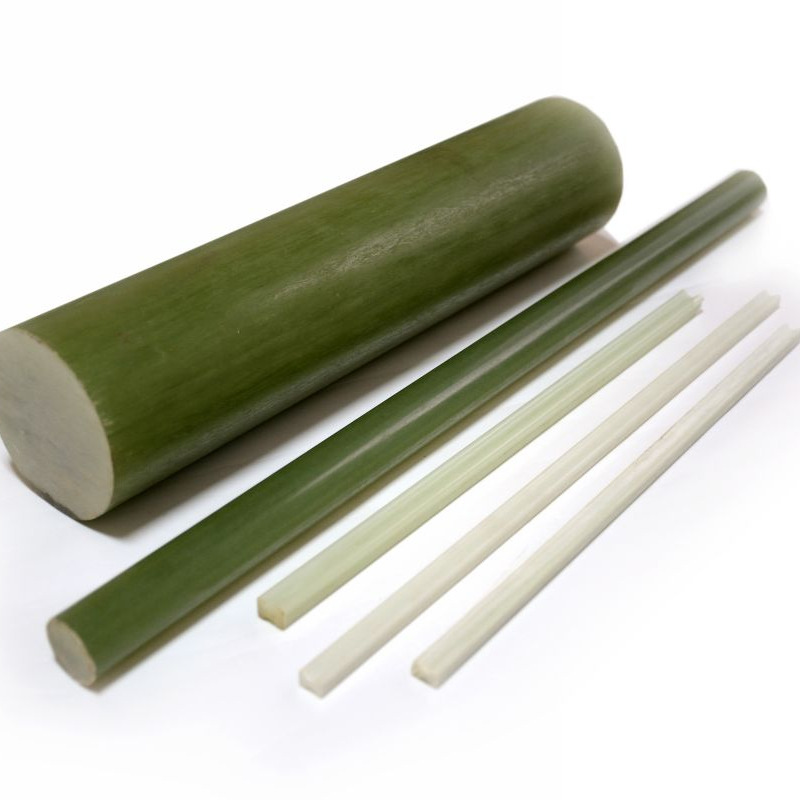

Electrical insulation glue frp Fr4 grp fiberglass round bar

50 Kilograms
MOQ
$2.50(50 - 99 Kilograms) $2.30(>=100 Kilograms)
価格
Electrical insulation glue frp Fr4 grp fiberglass round bar
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: ED-P
Application: Electrical, Electrical
Surface Treatment: smooth, smooth
Technique: pultrusion, pultrusion
Processing Service: Moulding, Punching, Cutting
Product name: epoxy round bar
Material: Fibreglass Reinforced Plastic
Length: Customized Length
Diameter: 10mm
Weight: 0.2kg/m
基本情報
Model Number: ED-P
お支払配送条件
Packaging Details: wooden case
製品の説明
Product Description
Epoxy fiberglass rod is an insulating product formed by impregnating an epoxy composite resin with an alkali-free fiberglass yarn through vacuum injection, continuous pultrusion and curing.

Insulation rods have good electrical properties and mechanical strength, as well as high temperature resistance and corrosion resistance.
Fiberglass Pultrusion Process Flow
Fiberglass reinforced plastic is one of the strongest and most durable materials in the world.

Pultrusion is a manufacturing process for producing continuous lengths of fiberglass reinforced plastics shapes with a constant cross section.

Surfacing veil is added to give the profile a resin rich surface and enhance the appearance of the final product.
The wet out reinforcements now enter the heated pultrusion die.The heat begins the thermosetting reaction process that cures the finished profile.

The cured profile is now advanced by a caterpillar style puller to the cut off saw where it will be cut to its final length.
Available Parameters
φ4mm
φ24mm
φ45mm
φ5mm
φ26mm
φ50mm
φ8mm
φ28mm
φ53mm
φ10mm
φ30mm
φ60mm
φ12mm
φ34mm
φ68mm
φ16mm
φ36mm
φ70mm
φ18mm
φ38mm
φ80mm
φ20mm
φ40mm
φ100mm
Main Performace of Epoxy Rods
No.
Item
Units
Indicators
1
Density
g/cm3
≥2.1
2
Water absorption
%
≤0.05
3
Tensile strength
Mpa
≥1500
4
Siphon test
Min
≥15
5
Water diffusion test
MA
≤0.5
6
Stress corrosion resistance
h
≥96
7
Bending strength
Mpa
≥230
8
Volume resistivity
Ω.m
≥10^10
9
Fiber content
%
≥80
10
Power frequency voltage
Kv
≥50
11
Full wave impulse voltage
Kv
≥100
12
Flame restardant
-
V0
Main Featrues
Anti-corrosion and anti-aging.

Light weight,high strength,impact resistance.

Coated with prevent aging layer.

Excellent insulating performance.

Long service life and no maintenance.

Water proof,fireproof,insulation,good magnetic permeability.

Easy to cut and install.

FAQ
Q:Could I know the basic parameters?

A:Yes. Pls find out data sheet above data sheet about the fiberglass pultrusion parameters.
Length is any length can make.usually is not exceed 12meter length. As container only can
loading 12meter max.
(If you need the size is not available mould, then need open new mould according to your request.)

Q:What is your MOQ?

A:Min 1000meters if no stock.

Q:How can I get a quotation quickly?

A:1)Pls advise what size you need?
2)Where you plan to use this epoxy rods ?
3)Total qty how many pcs you need ?
4)What colour you need ?

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.Q:What is your MOQ?

Q:How do you produce the color of frp flat bar?
A:Any colour can making. Just adivse us the Ral Col NO. And the colour is making during production.

Q:Can I get free samples?
A:Yes. Pls contact with us to send you free samples.
