Name: Durable FRP reinforcement bar top alternative to steel rebar
Brand: Durable FRP reinforcement bar top alternative to steel rebar
SKU: YL-G-JC
Rating: 4.9 (108 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: YL-G-JC

Application: reinforce floors, roads, airports

Surface Treatment: fully threaded, sand coated

Technique: pultrusion

Surface treatment: fully thread,sand coated

Production Process: pultrusion

characteristic: Durable,light,High strength,Fire retardant

Raw materials: Fiberglass, unsaturated resin

Size: Customized from 4~40mm

MOQ: 1 ton

Trade term: EXW,FOB,CIF

証明: ISO9001

Production capacity: 30,000 meters per day

基本情報

証明: ISO9001

Model Number: YL-G-JC

お支払配送条件

Packaging Details: Plywood pallet with plastics wrapped for packing

Supply Ability: 900000 Meter/Meters per Month

製品の説明

Products Description

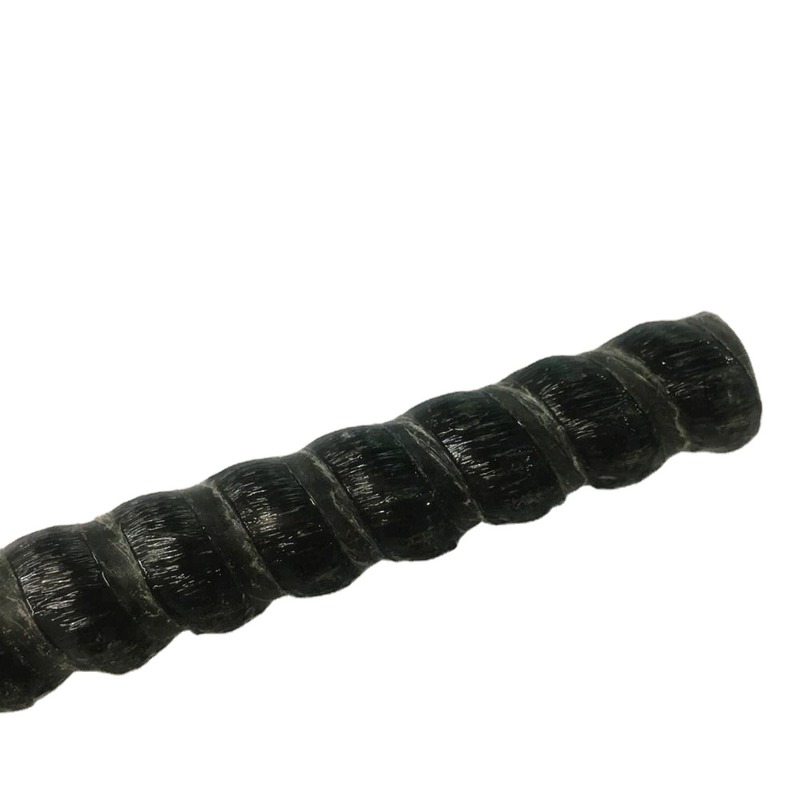

Fiberglass reinforce bar is a Spiral Wrapped Structural Reinforcing Rod made from a combination of fiberglass roving and resin. Developed as a superior alternative to steel in concrete reinforcement, FRP Rebar is suitable for applications requiring a lightweight material that has high tensile strength, with non-corrosive and non-conductive properties. For example, properly reinforced FRP concrete slabs exposed to heavy traffic, such as bridge decks and driveways, last approximately 20 times longer than conventional
methods.

FRP rebar Application:
1. Concrete bridge structure
2. Anti-corrosion construction
3. Underground project
4. Road Construction
5. Seaport/Dock/Coastal/Parking and etc concrete area
6. Low conductive and Non-magnetic field
7. Threaded rebar / anchor bolt to be available as reinforced material

FRP rebar benefits:
* Tensile Strength is Greater than Steel
* Electrically and thermally non-conductive
* Transparent to Magnetic Fields & Radar Frequencies
* Extremely Lightweight - 75% Lighter than Steel Rebar
* Will Never Corrode - Conservative Estimates Indicate Longevity Over 100 Years

Product Paramenters

Yulong FRP Rebar parameters
FRP Rebar	Diameter(mm)	Area(cm2)	Unit weight(Kg/m)	UTS(Mpa)	Ultimate Cutting strength(Mpa)	Elasticity modulus (Gpa)
001	4	0.12	0.032	1500	＞150	＞40
002	6	0.28	0.051	1280	＞150	＞40
003	8	0.50	0.098	1080	＞150	＞40
004	10	0.73	0.150	980	＞150	＞40
005	12	1.03	0.210	870	＞150	＞40
006	14	1.34	0.275	764	＞150	＞40
007	16	1.80	0.388	752	＞150	＞40
008	18	2.48	0.485	744	＞150	＞40
009	20	2.78	0.570	716	＞150	＞40
010	22	3.55	0.700	695	＞150	＞40
011	25	4.78	0.970	675	＞150	＞40
012	28	5.90	1.195	702	＞150	＞40
013	30	6.71	1.350	637	＞150	＞40
014	32	7.40	1.520	626	＞150	＞40

Company Profile

Established in 2011, Hubei Yulong Group Jinli New Materials Co., Ltd specializes in manufacturing & exporting Fiberglass Reinforced Polymer (GFRP/FRP) composite products, our main products are Fiberglass stakes, pultruded FRP profiles, fiberglass rebar, fiberglass Anchor bolt, FRP Cable Tray, and other FRP grating sheets. As substitute products of steel, this new type of composite material is widely used in the field of civil construction, public facilities, buildings, roads, highway, bridges, mines, agricultural facilities, other non-magnetic etc. Fiberglass reinforced polymer/plastic is made from high strength glass fibers along with extremely durable resin. The glass fibers impart strength to the product while the resin imparts excellent corrosion resistance properties in harsh chemical and alkaline environments. Thus, they have the features of light weight, high strength, anti-corrosion and long service life. Hubei Yulong Group Jinli New Materials Co., Ltd is subsidiary company of Yulong Group, located in Yichang City, Hubei, China, where is well known for Yangtze River Three Gorges Dam Project. Our company aims to provide professional customized FRP structural solutions. And our products are already exported to many countries, like USA, Canada, Belize, Mexico, France, Poland, Spain, Italy, Bulgaria, Singapore, Vietnam, Thailand etc. We can guarantee to provide our customers with competitive prices, strictly quality control, prompt delivery and different products. We look forward to cooperating with you, your requests and requirements will be highly concerned from us.
